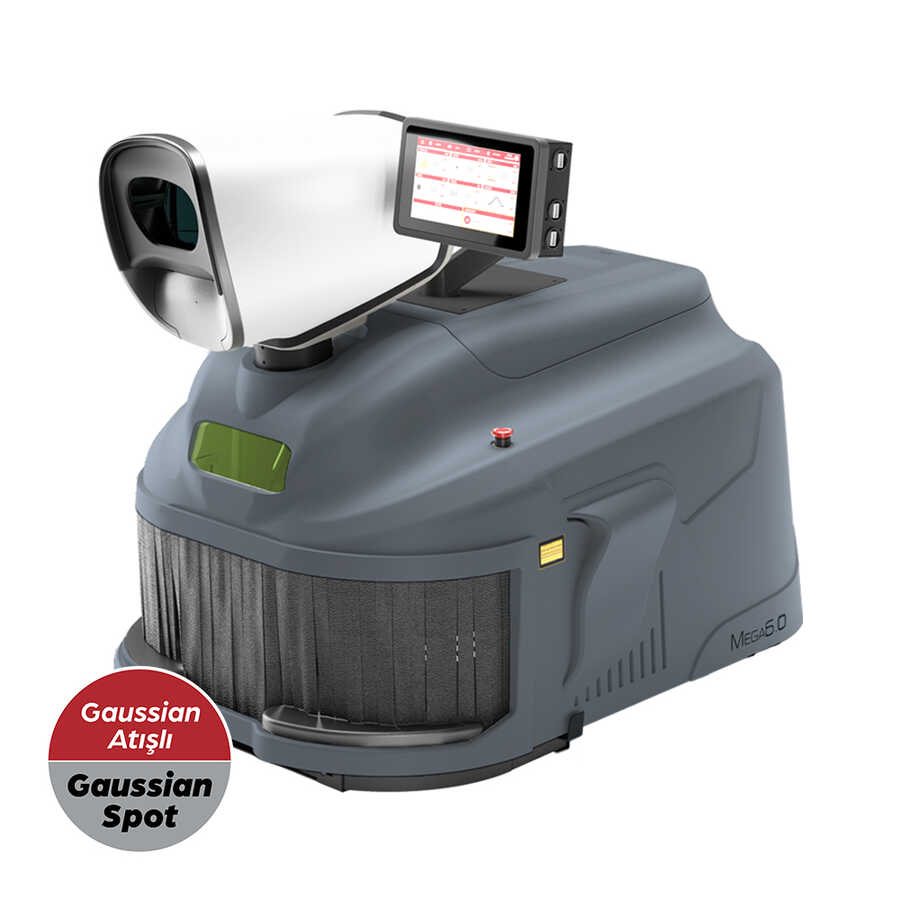

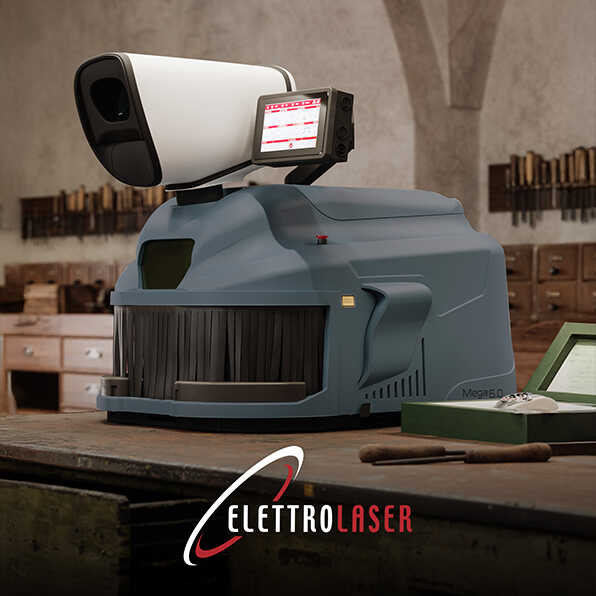

New Laser Welding Machine Mega 6.0 3D 255 J(Gauissian)
Product Code: AXLM-046N
- Features
- Comments (0)
- Recommend
- Suggestion Box
-
Product Code AXLM-046N Laser Source YAG Wavelength 1064 mm Max Power 11 Kw Energy 255 J Impulse Time 0,1 ÷ 25 ms Pulse Frequency 0,5 ÷ 40 Hz Spot Diameter 0,2 ÷ 2,0 mm Memories Cell Stored 100 Internal Control Joystick
External Control
7"Colour Touch ScreenInput Power 230 V , 50/60 Hz Ampere 10 Amper
Microscope TypeVision 3D Lynx Argon Connection Yes Type Desktop Dimensions 850x550x510 mm Weight 55 kg INSTRUCTIONS;
*It is possible to weld: gold, platinum, chromecobalt, steel, palladium, silver with and without the addition of wire.
*7" Adjustable colour touch screen display
*Ergonomic Design
*Double powerful integrated cooling system
*Gaussian pulsed with energy efficiency and better quality
*New design durable and environmentally friendly material body
*100 memories storage cells with name
*Working area is illuminated with LED
*SMOOTH SPOT technology
*3 Year Guarantee
*Gaussian shooting technology has been added.
*Made in ITALY
Gaussian
*Gaussian pulse is an energy distribution pattern in which the laser beam is
highest in intensity at the center and decreases toward the edges.
*This pulse type means that the energy density across the laser beam's
cross-section exhibits a Gaussian distribution.
*Designed for precision work.
Advantages of Gaussian shot:*The risk of drilling holes is reduced.
*With repeated shots at the same spot, the cumulative heat is more controlled.
*Clarity and accuracy are increased in microscopic operations.
*It provides better results on different materials (gold, silver, platinum, titanium).
-
3,900.00 €191,100.00 ₺ Exc. VAT -
4,250.00 €208,250.00 ₺ Exc. VAT
-
7,500.00 €367,500.00 ₺ Exc. VAT
