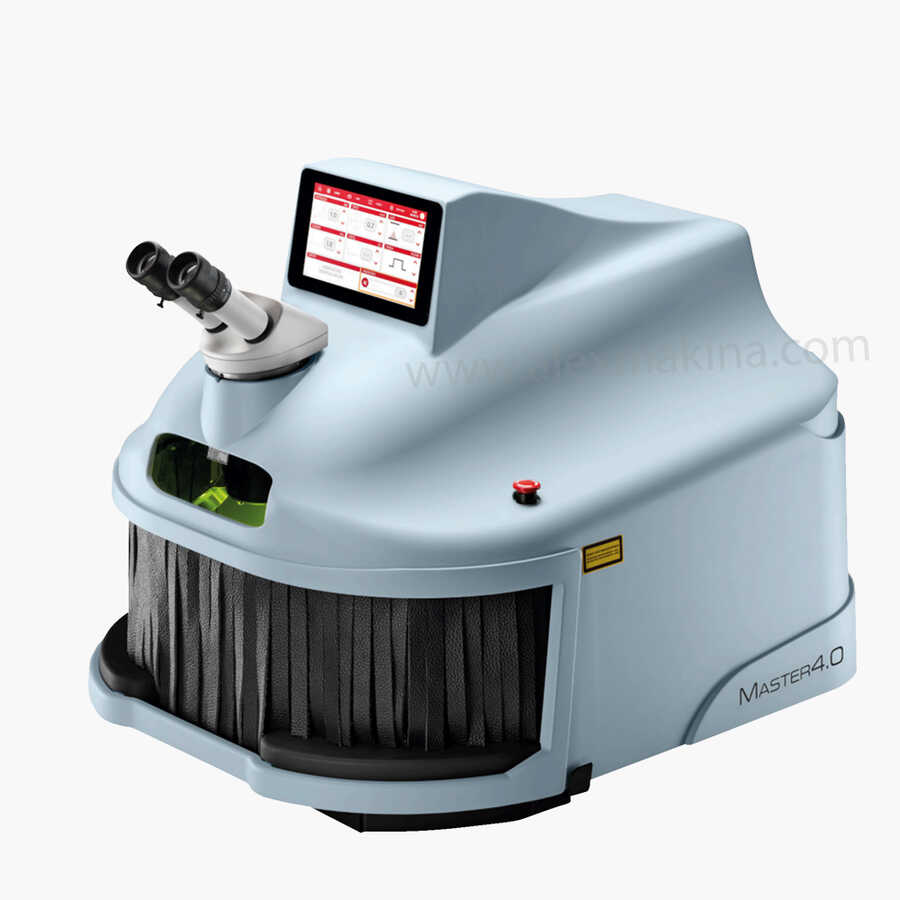

New Laser Welding Machine Master 4.0 Microscope 225 J

Product Code: AXLM-040
Share:
  • Features
  • Comments (0)
  • Recommend
  • Suggestion Box
  • Product Code AXLM-040
    Laser Source YAG
    Wavelength 1064 mm
    Max Power 9 Kw
    Energy 225 j
    Impulse Time 0,1 ÷ 25 ms
    Pulse Frequency 0,5 ÷ 30 Hz
    Spot Diameter 0,2 ÷ 2,0 mm
    Memories Cell Stored 100
    Internal Control Joystick
    External Control 7"Colour Touch Screen
    Input Power 230 V , 50/60 Hz
    Ampere 10 Amper
    Microscope Type Stereomicroscope 10 x
    Argon Connection Yes
    Type Desktop
    Dimensions  710x510x552 mm
    Weight 43 kg

    *It is possible to weld: gold, platinum, chromecobalt, steel, palladium, silver with and without the addition of wire.

    *7" Adjustable colour touch screen display

    *Ergonomic Design

    *It provides ease of use with the armrests added to the design and the new generation body.

    *Wide internal vision

    *100 memories storage cells with name

    *Working area is illuminated with LED

    *Lamp life:20 million shot

    *3 Year Guarantee
