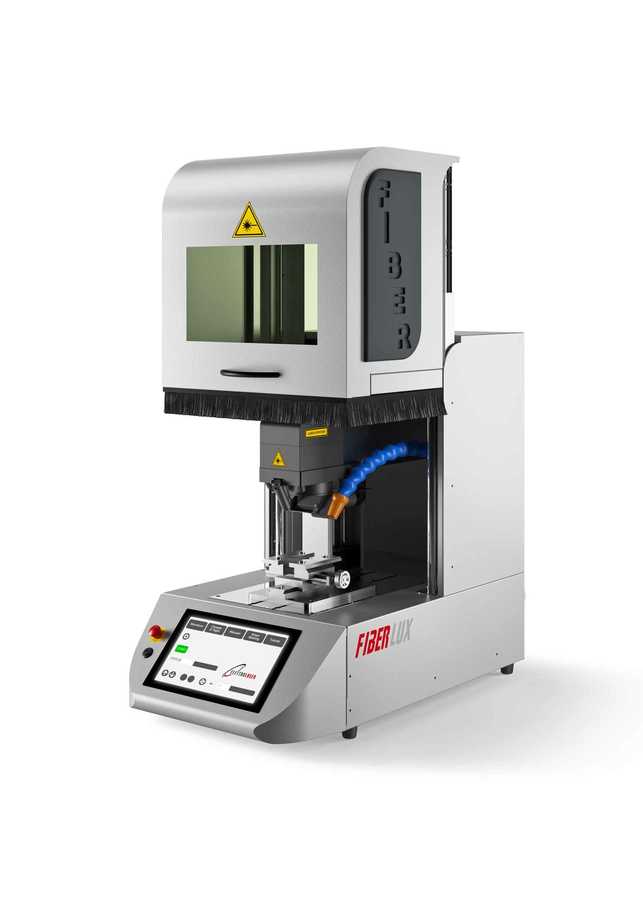

Fiberlux Pro Laser Machine 100 Watt

Product Code: AXLM-P100
Share:
  • Features
  • Video
  • Comments (0)
  • Recommend
  • Suggestion Box
  • Product Code AXLM-P100
    Output Power 100 w
    Wavelength 1064 mm
    Power Supply 230V 50/60 Hz
    Absorbed Power 450 w
    Working Space Dimensions 250x250x350 mm
    Focal 100:Marking Area / Spot Size 60x60 mm / 16 µm
    Focal 160:Marking Area / Spot Size 110x110 mm / 26 µm
    Focal 210:Marking Area / Spot Size 160x160 mm / 34 µm
    Speed of Galvo Head 7000 mm/s
    Max Frequency 1000 KHz
    Cooling System Havalı Soğutma

    Laser Class IV / I
    Dimensions  750x450x700 mm
    Weight 60 kg

    *Vice fixing for object centering.

    *Pulsed Fiber laser.

    *Optional R-axis for making rings and bracelets

    *Z-axis with stepped motor controlled by software

    *Optional scanner detection system

    *2 Year Guarantee.
