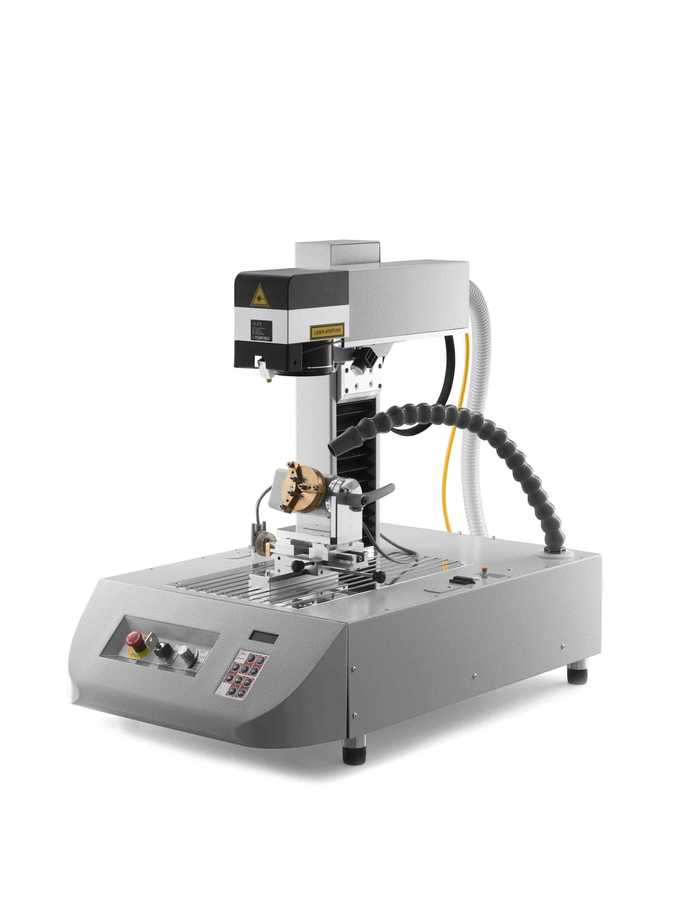

Fiberlux El Lite Fiber Laser 20 Watt

Product Code: AXLM-ELL20
Get Offer
Share:
  • Features
  • Comments (0)
  • Recommend
  • Suggestion Box
  • Product Code AXLM-ELL20
    Output Power 20 w
    Wavelength 1064 mm
    Power Supply 230V 50/60 Hz
    Absorbed Power 250 w

    Working Space Dimensions    		 250x250x350 mm

    Focal 100:Marking Area / Spot Size    		 60x60 mm / 16 µm

    Focal 160:Marking Area / Spot Size    		 110x110 mm / 26 µm
    Speed of Galvo Head 5000 mm/s
    Max Frequency 60 KHz
    Cooling System Air Cooled
    Laser Class IV
    Dimensions  750x450x600 mm
    Weight 55 kg

    *Vice fixing for object centering.

    *Pulsed Fiber laser.

    *Optional R-axis for making rings and bracelets

    *Z-axis with stepped motor controlled by software

    *2 Year Guarantee.
