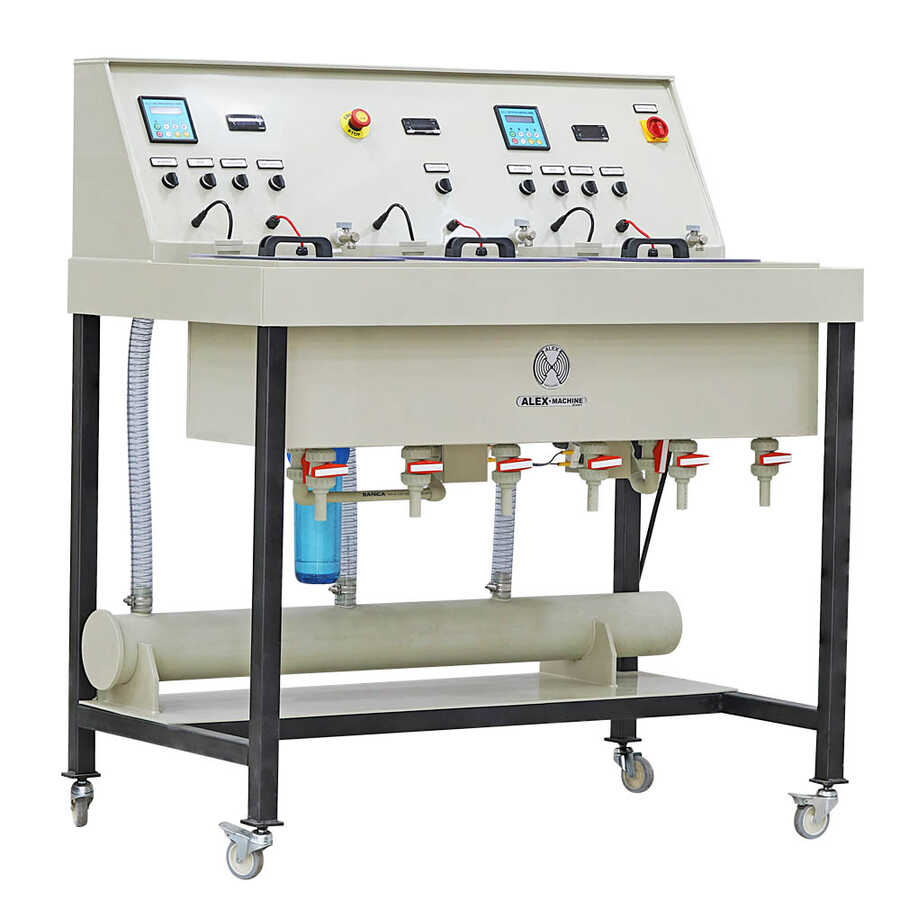

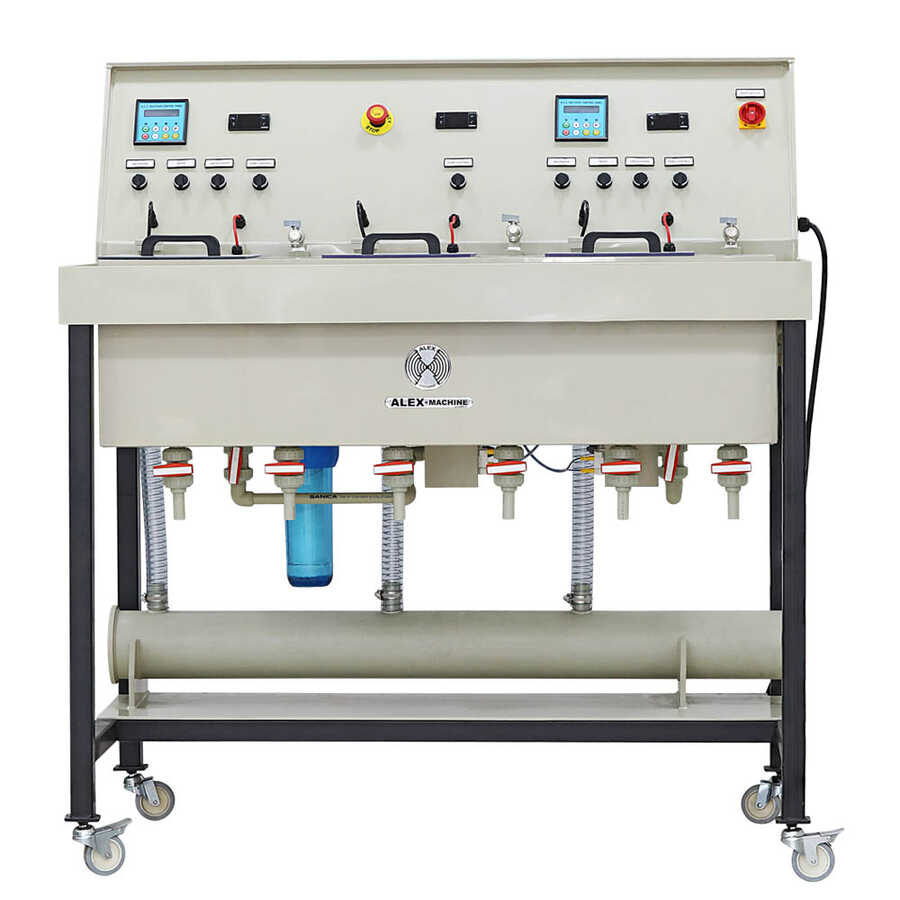

Plating Machine 18 lt / 6 Tank
Product Code: AXKB-186Go to payment options
- Features
- Payment Options
- Comments (0)
- Recommend
-
Product Code AXKB-186 Tank Capacity 18 lt Tank Quantity 6 Tank Dimensions 1.24x30x31 cm (h:25cm) - 18 lt
2.13x30x31 cm (h:25cm) - 10 lt
3.24x30x31 cm (h:25cm) - 18 lt
4.13x30x31 cm (h:25cm) - 10 lt
5.24x30x31 cm (h:25cm) - 18 lt
6.13x30x31 cm (h:25cm) - 10 lt
Rectifier Quantity 2 pieces (1. ve 5. tanks) Rectifier 12 volt / 60 amper Rezistans 3 pieces (1,3 ve 5. tanks) Heating Power 3 x 800 watt Movement 2 pieces (1. ve 5. tanks) Temp. Measurement 3 pieces (1,3 ve 5. tanks) Filtering 5.tank External Dimensions 134x74x143 cm Voltage 220 v Weight 60 kg *This device is suitable for Rhodium, Gold, Silver and similar precious metal platings
*Thanks to its movable arms, every aspect of the product is plated at the same thickness
*Plating bath stays clean all the time, thanks to the filter and circulation pump in the bath
*Automatic pure water filling can be done with the pure water valves on the rinsing baths
*With the liquid level control mechanism, automatic shutdown is activated when the liquid drops below a certain level
*Makes precise temperature measurement with digital temperature control and thermocouple in the liquid
*With the ventilation system, harmful vapors are discharged
*With emergency stop, all electrical connections can be closed in case of sudden problems
*Easy discharge can be done with the valves at the bottom
*Outer body is made of acid resistant polypropylene material
*The device is shipped with a special wheeled metal stand
*2 cleaning anodes are sent with the device
-
2,000.00 €98,000.00 ₺ Exc. VAT -
2,400.00 €117,600.00 ₺ Exc. VAT
-
2,700.00 €132,300.00 ₺ Exc. VAT
-
4,700.00 €230,300.00 ₺ Exc. VAT
